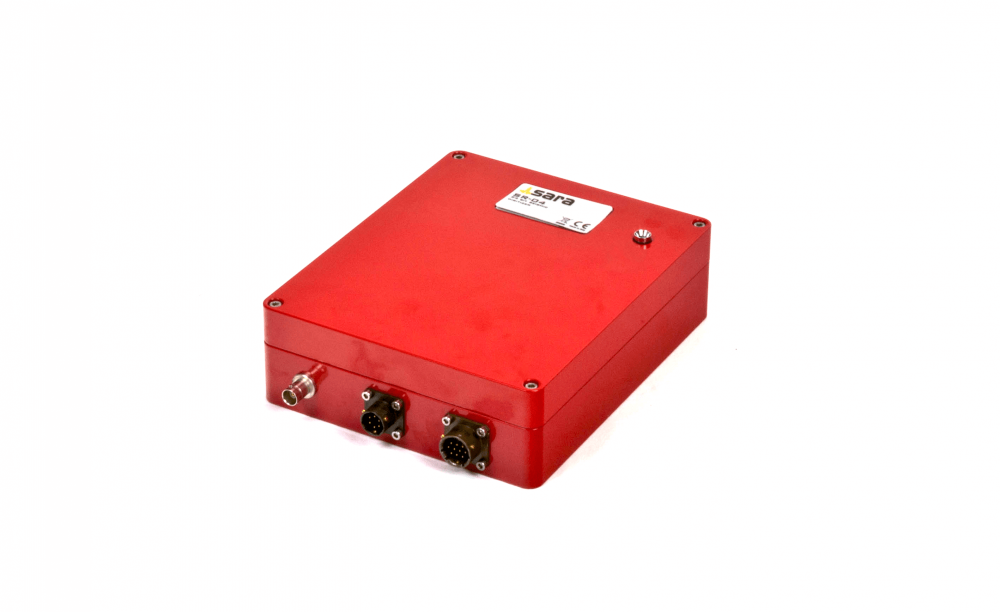

The digitiser SR24 or SR32 is a 3 channels digitizer with high performance designed to digitize the signal coming from a sensor, and give the data flow in continuous with different data rates. With the possibility to record signal with very low frequencies, and with his very low thermal drift, is an excellent instrument with a very good signal-to-noise and quality/price ratio. It is considered one of the best seismic digitiser in the world. It can achieve a dynamic range of 141.5dB at 100 SPS and over 145dB at 50 SPS using the 32 bit version.
The SR24/32 is compact, reliable and ease to use.With the RS232-USB adaptor is possible to connect directly to a PC and with our Suite SeismoWIN s possible to handle the acquisition and to analyze the data recorded.
With its low power consumption (<1W) and the integrated GPS, it is possible to use it on remote location with very small solar panels.
The SR24/32 was designed for work combined with our sensor, but it can works with other sensor from other companies. The main applications is seismic monitoring and it can works with our SS-45/20 or SS-10/05/02/01 for HVSR surveys.
